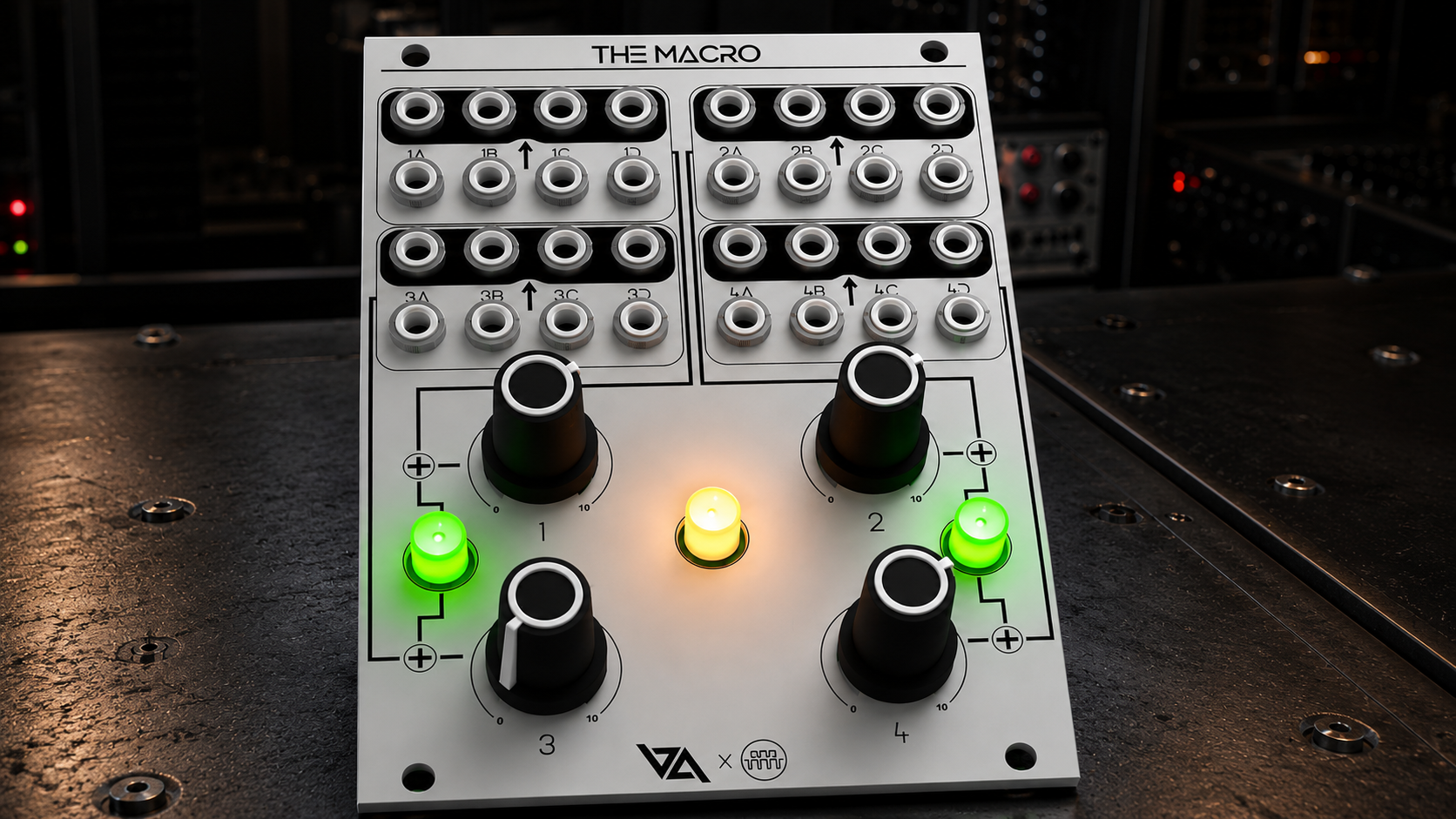

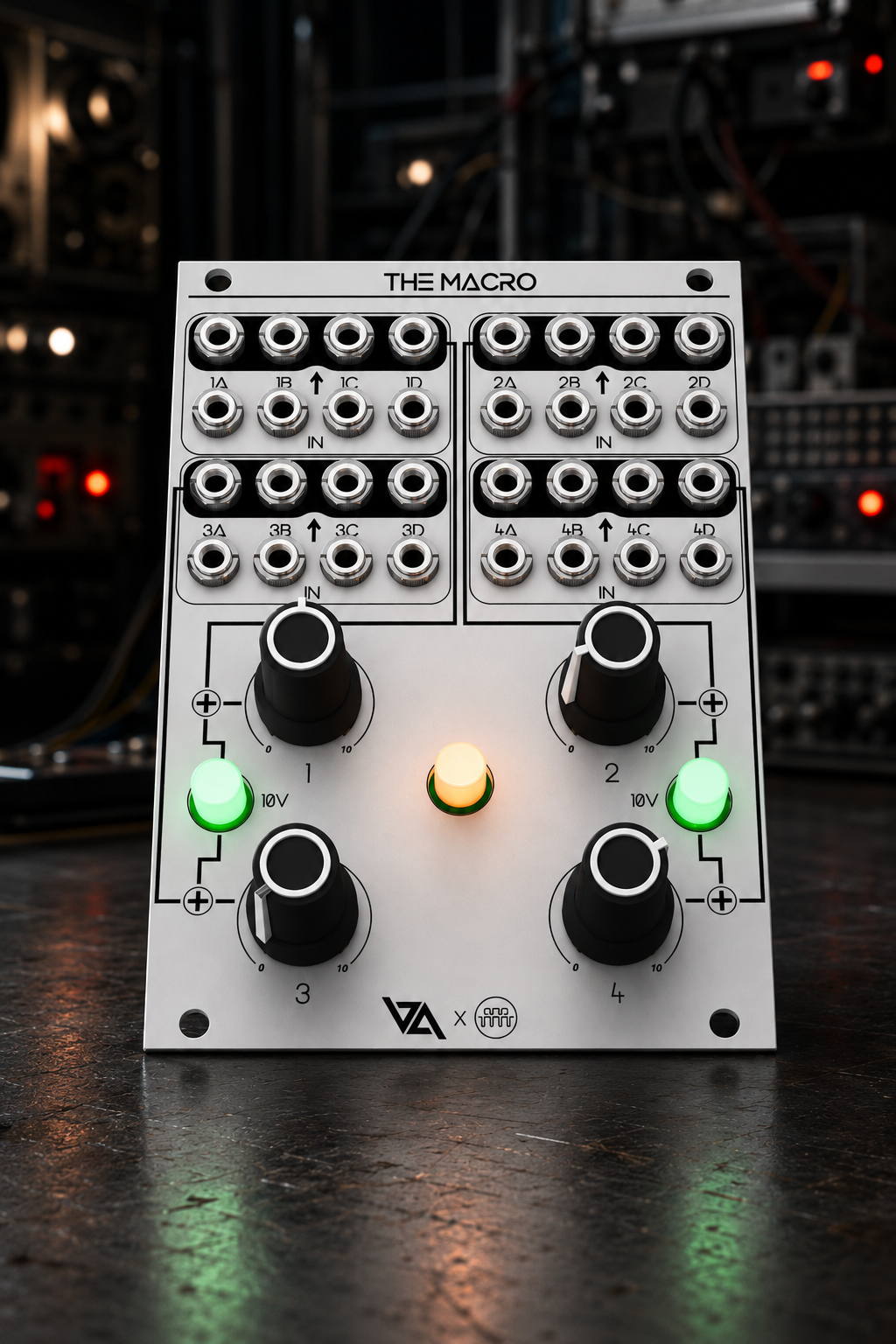

THE MACRO module

The Macro

Performance · CV Macro Controller

Performance
Oriented

Built for live use — quick control over multiple destinations at once.

LED feedback below each Macro knob.

4× Channels
16× Outputs

Each channel routes one macro to 4 buffered CV outputs.

Shift multiple parameters instantly.

CV Through
+ Macro

The Macro keeps the 4 Input CV signals unaltered, adding a shared offset to all of them at once.

Keep your patch alive while taking control when you need it.

Momentary
10V Gate

Two push buttons send 10 V to paired channels while pressed.

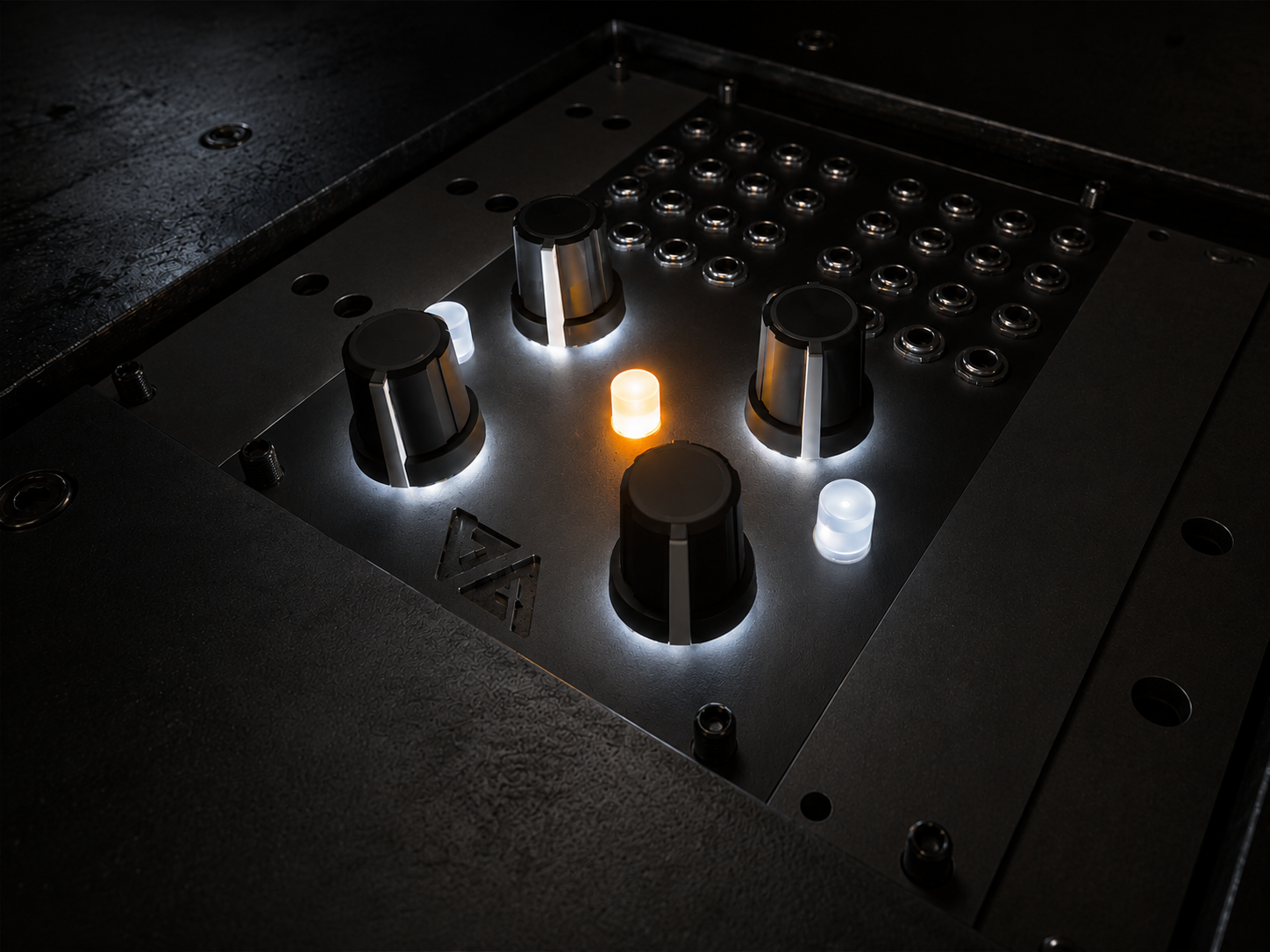

THE MACRO real module

How It Works

OUT = IN + MACRO (clipped to ±10 V)

Each channel applies the same manual macro offset to four independent CV paths.

Your external modulation stays intact — THE MACRO sums on top of it.

IN A IN B IN C IN D OUT A OUT B OUT C OUT D MACRO PUSH 10V
▷  = BUFFERED
⊕  = SUM
—  = SIGNAL PATH

Technical Details

I/OAll inputs / outputs buffered
Output range±10 V (clipped)
Macro range0 V – 10 V
Push buttons2 shared pairs · 10 V momentary
FormatEurorack 18HP 3U ±100mA

1 Macro Channel
4 Outputs

Experiment with the simulator:

· Drag the Macro knob,

· Turn inputs on or off,

· Cycle through input signals,

· Click the button for 10V.

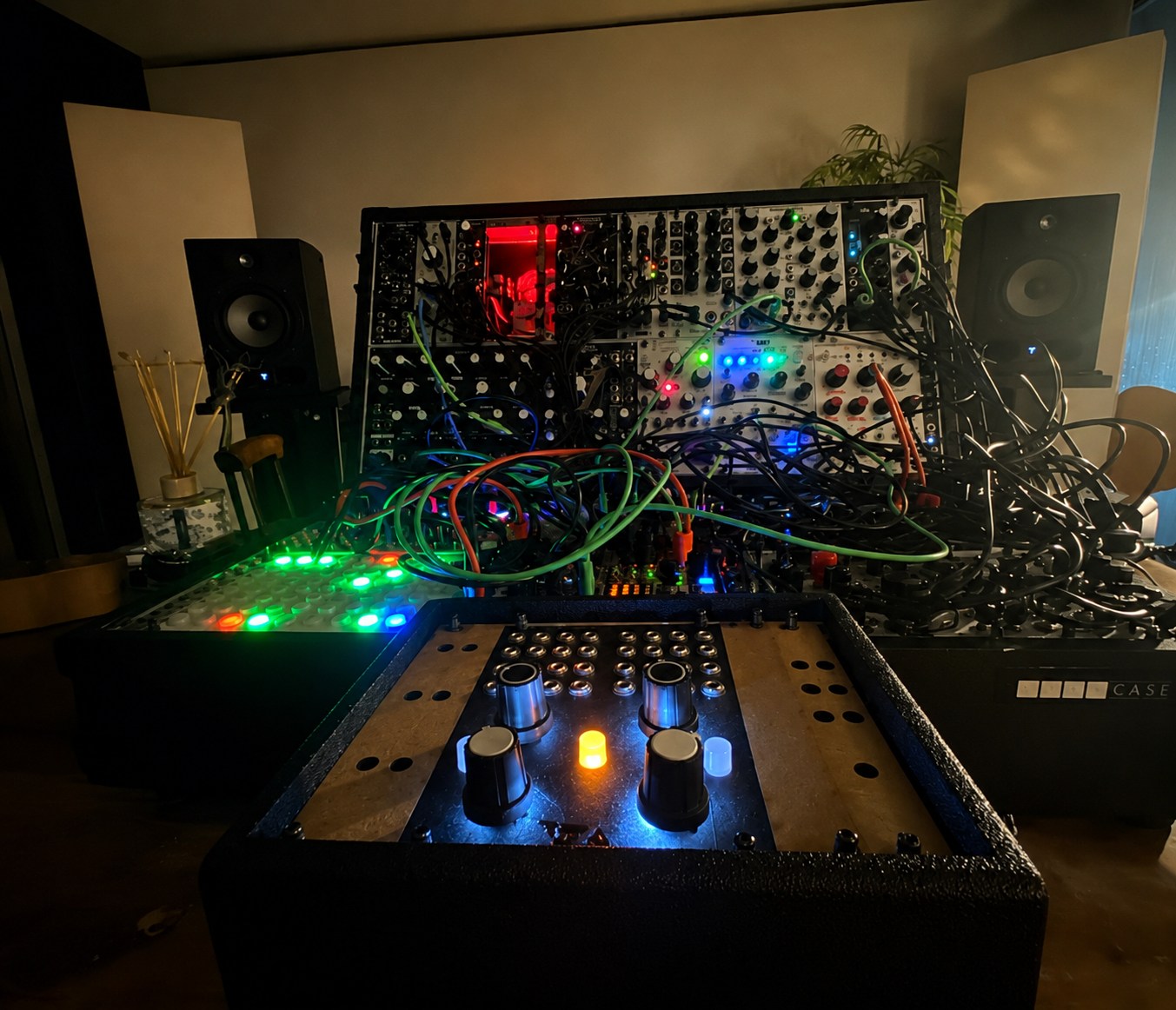

VA x Slow Patch

The Macro was born during the preparation for the first Live act of the modular synth band, Slow Patch.

Designed to shape multiple synth parameters at once, bringing coherence to transitions and structure to the performance.

Slow Patch live performance setup VA x Slow Patch module

About Voltage Alquemy

Voltage Alquemy makes Eurorack modules that bring order to complex systems. Built for the stage as much as the studio, each tool is compact, cross-manufacturer compatible, intuitive, and free of clutter.

Alchemists once distilled raw matter into gold; Voltage Alquemy distills tangled signal chains into pure, playable sound.

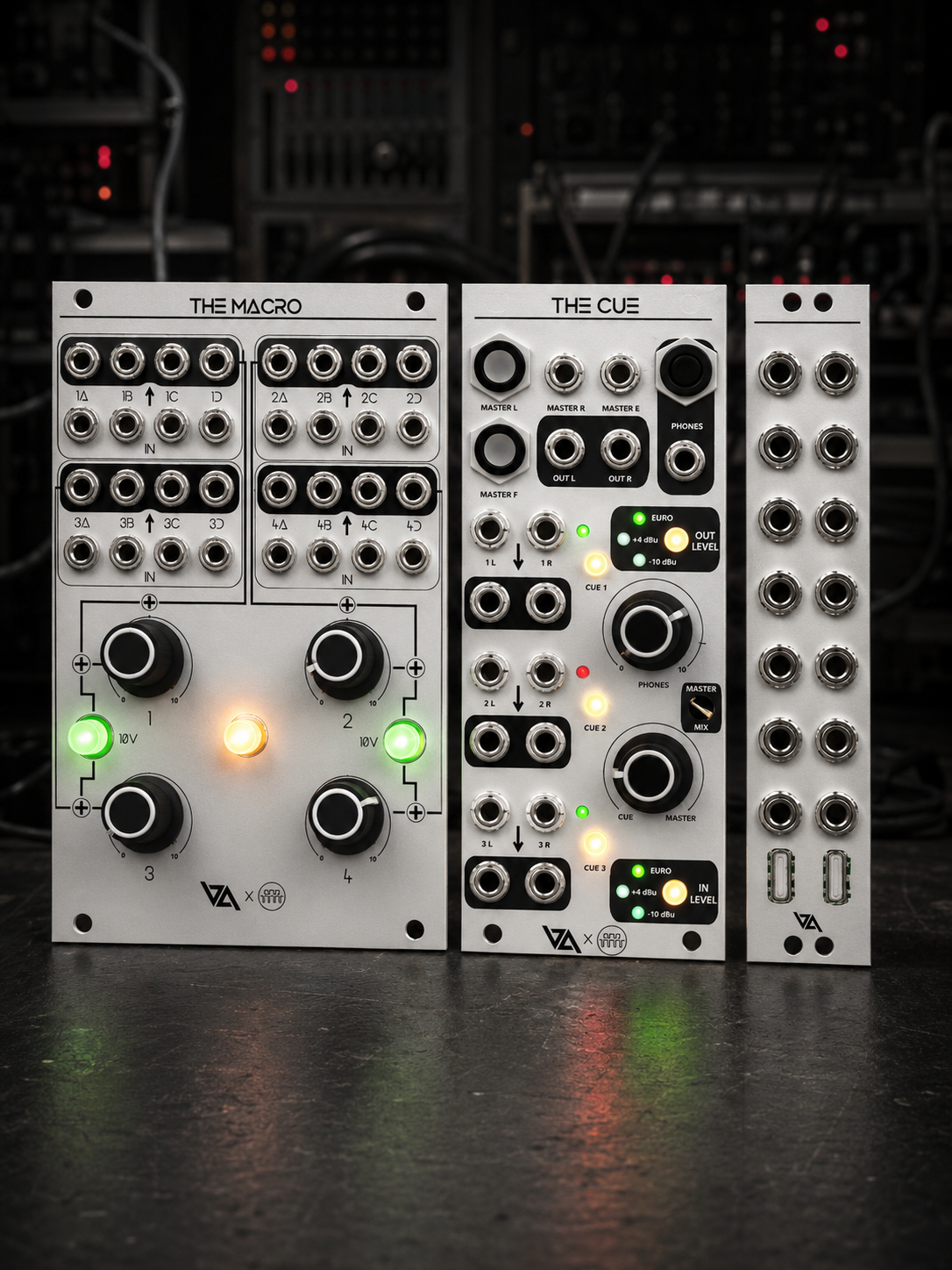

Voltage Alquemy lineup
